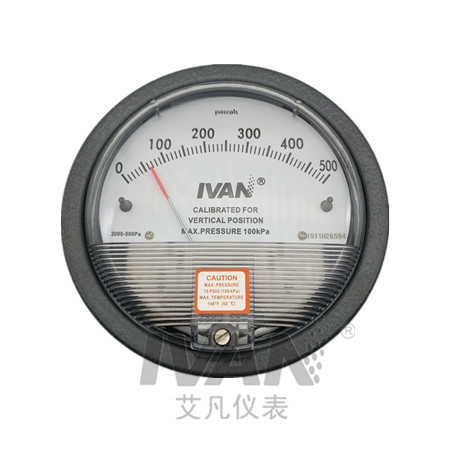

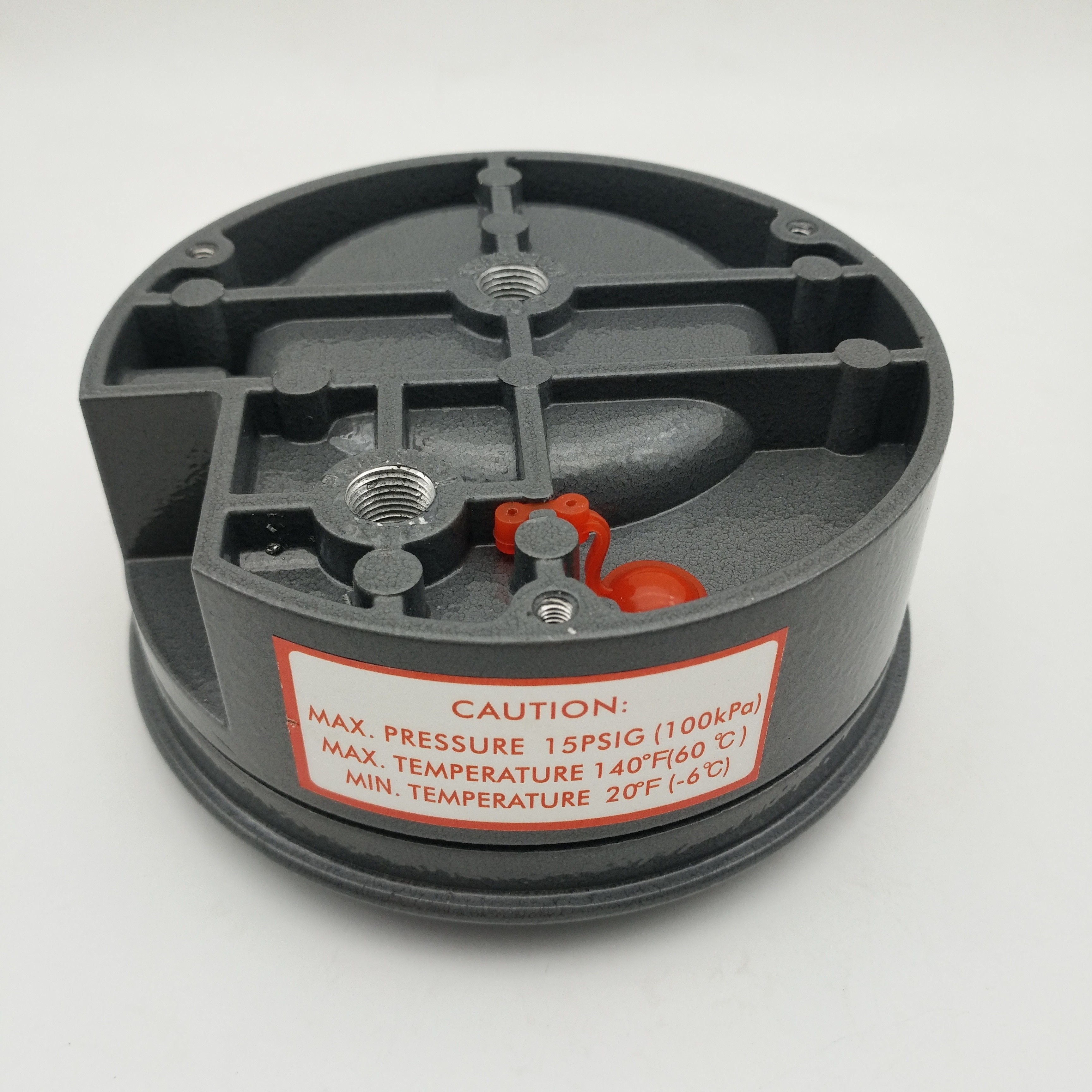

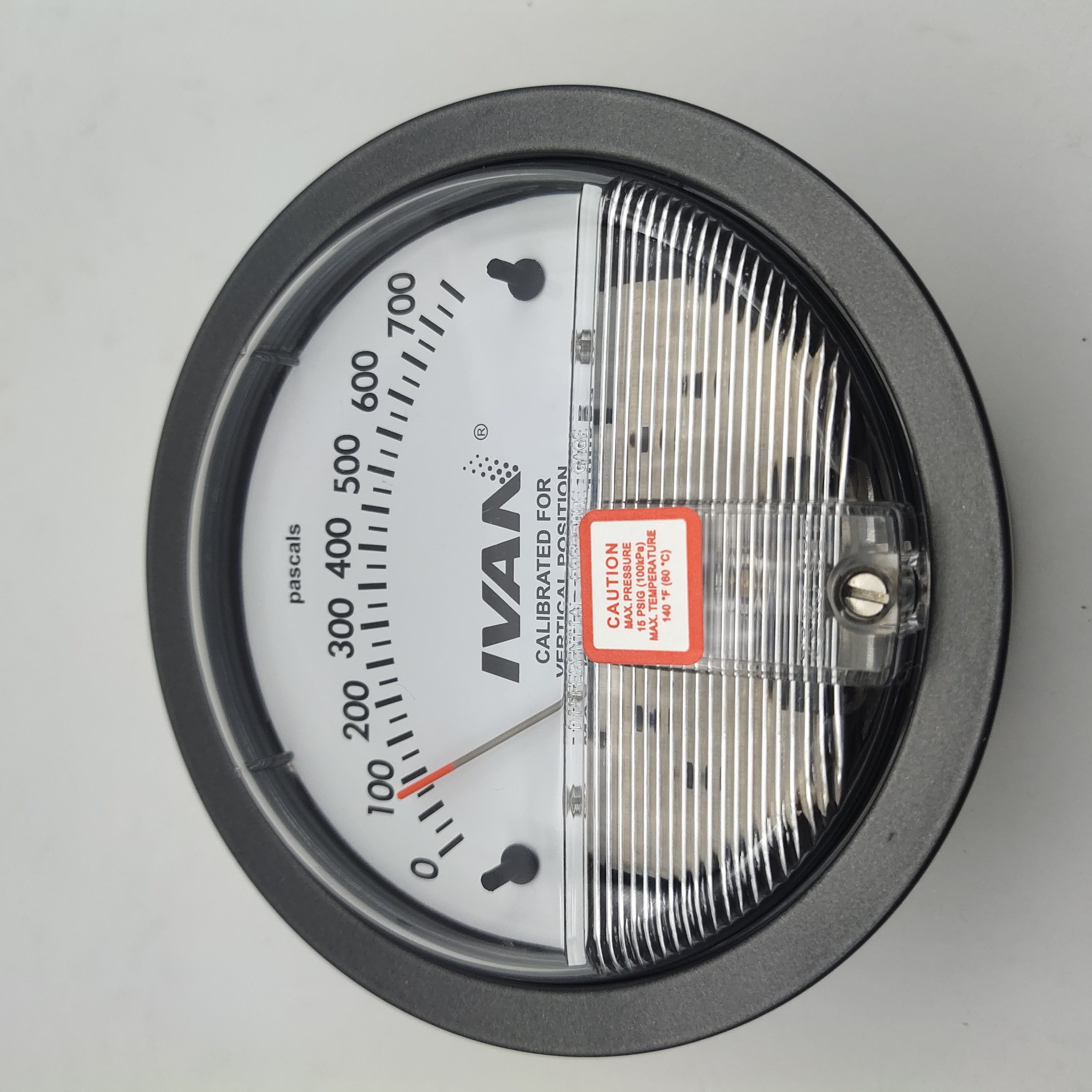

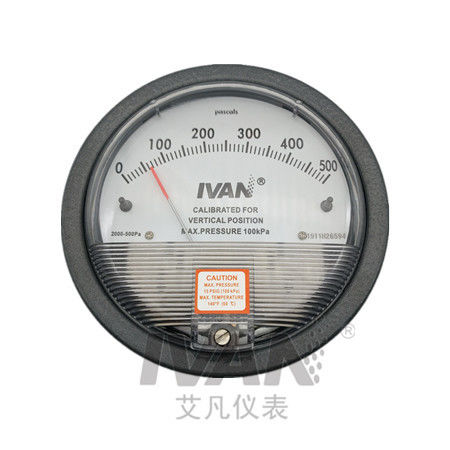

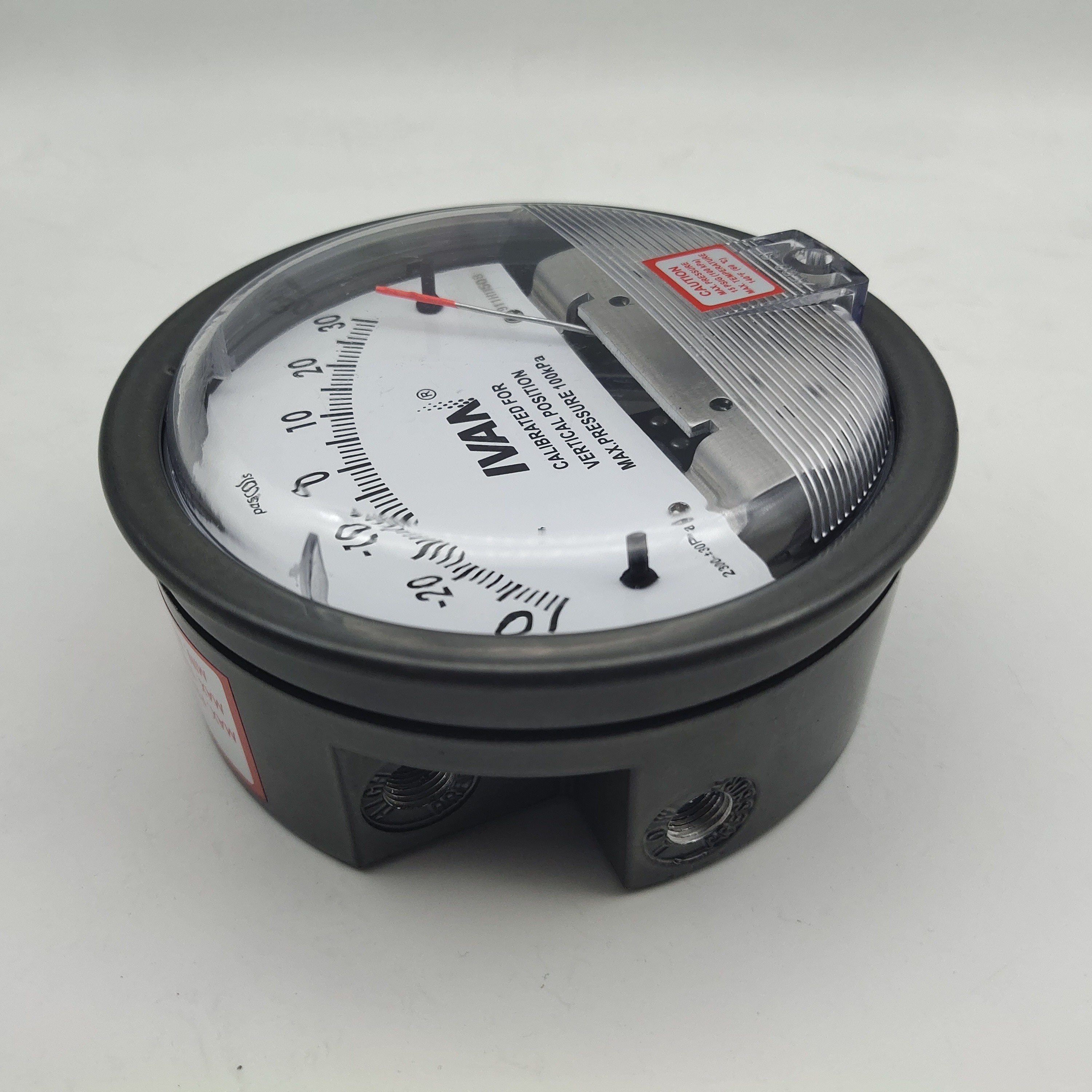

Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial

Basic Information
Place of Origin: Beijing, China
Model Number: A2000
Packaging Details: carton
Product Description

Product Description
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 0
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 1
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 2
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 3
Specification
Specifications
0 – 30Pa
0 – 400Pa
0 – 2.5KPa
0 – 30KPa
0 – 60Pa
0 – 500Pa
0 – 3.0KPa
-15~0~15Pa
0 – 100Pa
0 – 600Pa
0 – 5.0KPa
-30~0~30Pa
0 – 125Pa
0 – 750Pa
0 – 8.0KPa
-60~0~60Pa
0 – 200Pa
0 – 800Pa
0 – 10KPa
-125~0~125Pa
0 – 250Pa
0 – 1KPa
0 – 15KPa
-250~0~250Pa
0 – 300Pa
0 – 2KPa
0 – 25KPa
-500~0~500Pa
Customizable
-1~0~1KPa
-3~0~3KPa
-5~0~5KPa
-2~0~2KPa
-4~0~4KPa
-10~0~10KPa

Specifications of differential pressure gauge


Parameter
Ambient temperature
-20 ~ 80°C
Medium temperature
-20 ~ 500°C
Pressure port
1/8″ taper pipe thread
Shell material
aluminum alloy
Accuracy
±2.5% (Default)(Customizable)
Standard fittings
tap, hose, bracket
Rated pressure
-68 ~ 103KPa
Packing & Delivery
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 4
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 5


Packing & Delivery
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 6
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 7
Company Profile



Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 8
Exhibition
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 9
Certifications
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 10
Cast Aluminum Case Differential Pressure Gauge for 15PSI Max. Pressure in Industrial 11
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
