Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: AF410
Price: $80.00 - $95.00/units
Packaging Details: carton
Supply Ability: 500 Unit/Units per Week
Detail Information
Warranty: 1 Year Type: Industrial
Customized Support: OEM, ODM, OBM Product Name: Wind Speed Sensor
Port: Tianjin

Product Description

Product Description

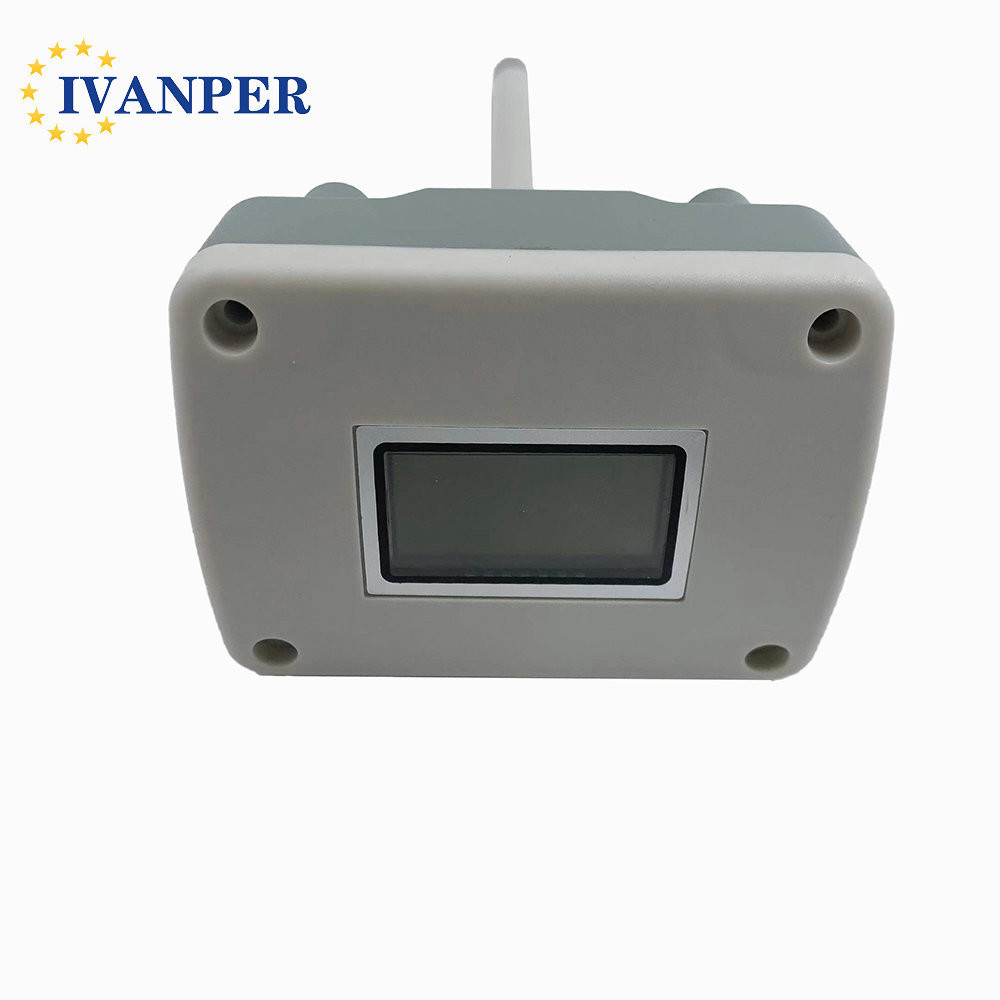

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 0

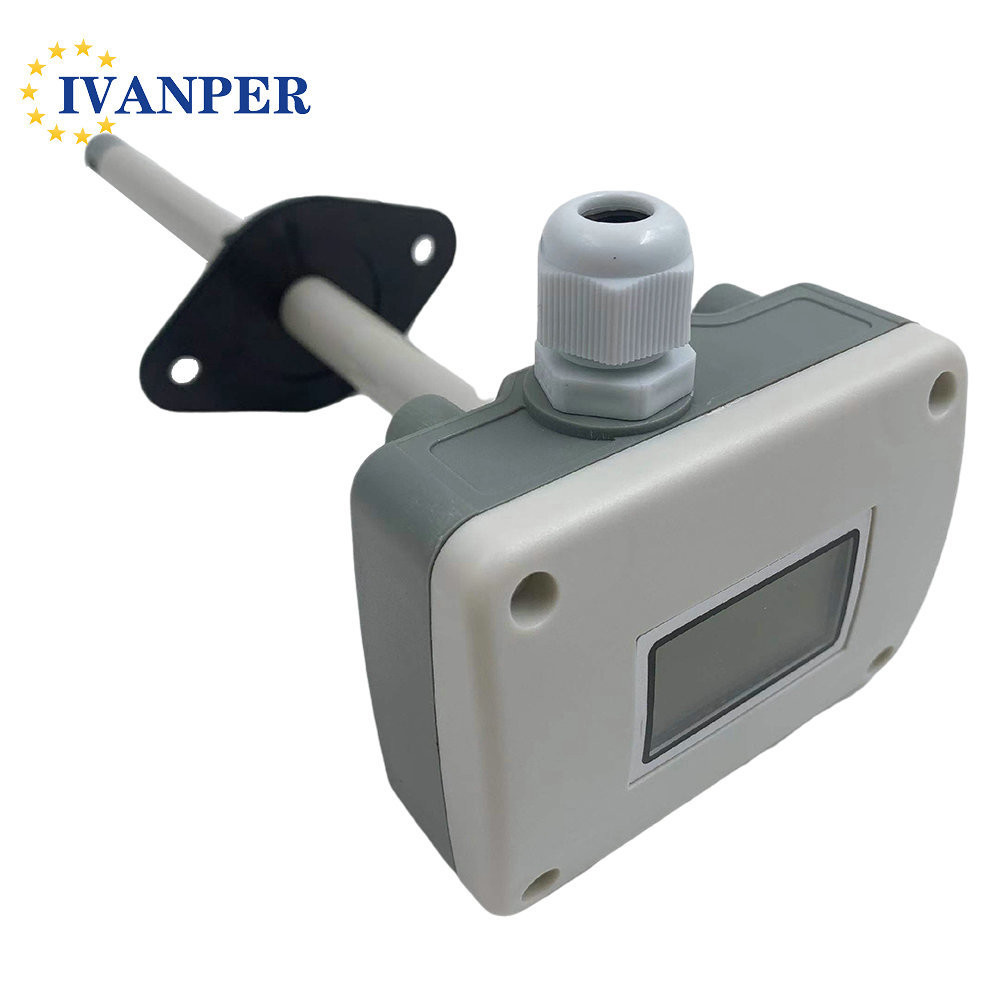

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 1

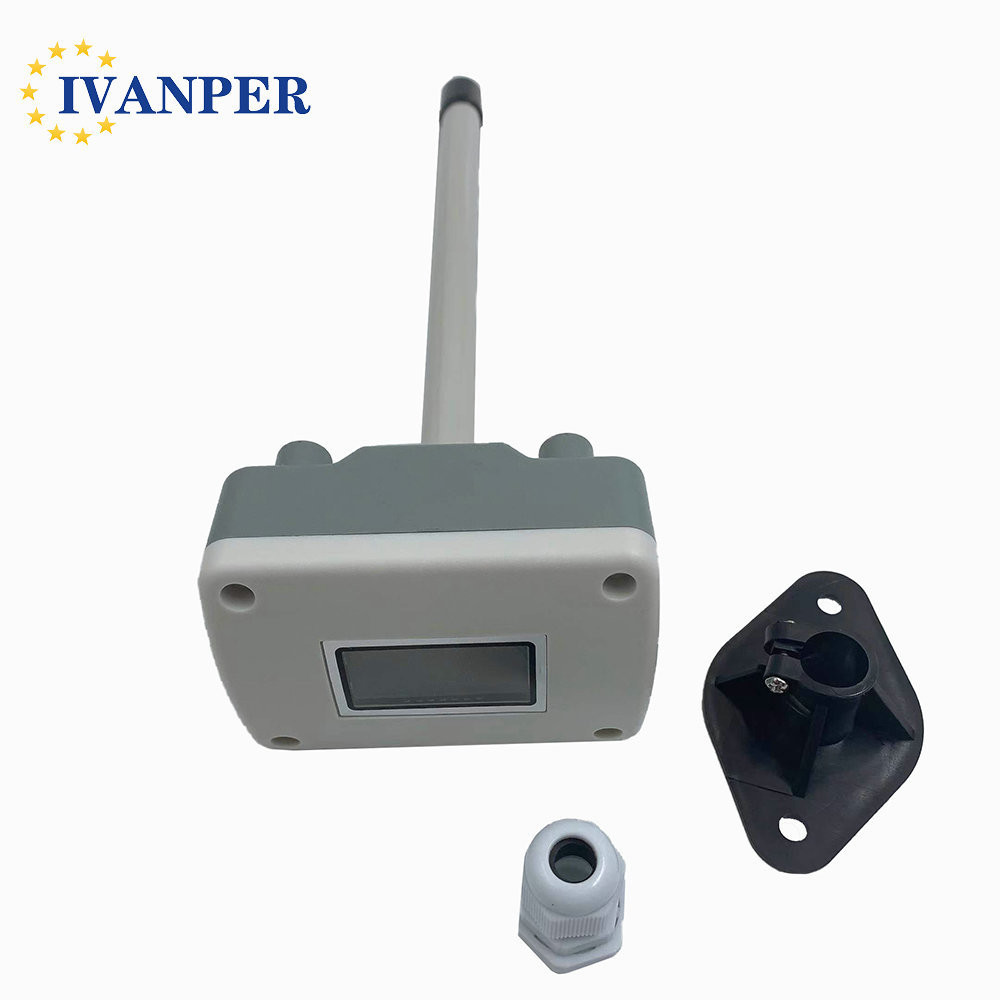

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 2
Specification
Power Supply
12V DC/AC 24V DC/AC 5V DC/AC (Customized)
Measurement Range
0-1m/s 0-2m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output
0-10V 0-20mA 4-20mA Rs485(modbus-RTU)
Measurement Accuracy
±(0.2m/s +3%of MV)
Consumption
2.5W
IP Grade
IP65
Response Latency
0.2s
Resolution
0.01m/s
Sensing Elements
Thermal sensor
Working Environment
Temperature:-40℃~80s℃ Humidty:5%~95%
Probe Length
Installation of flange: 150mm / Customized
Material of Probe
ABS engineering plastic
Rod Diameter
12mm, rod length: 220mm (customized), can be made of aluminum alloy
Packing & Delivery

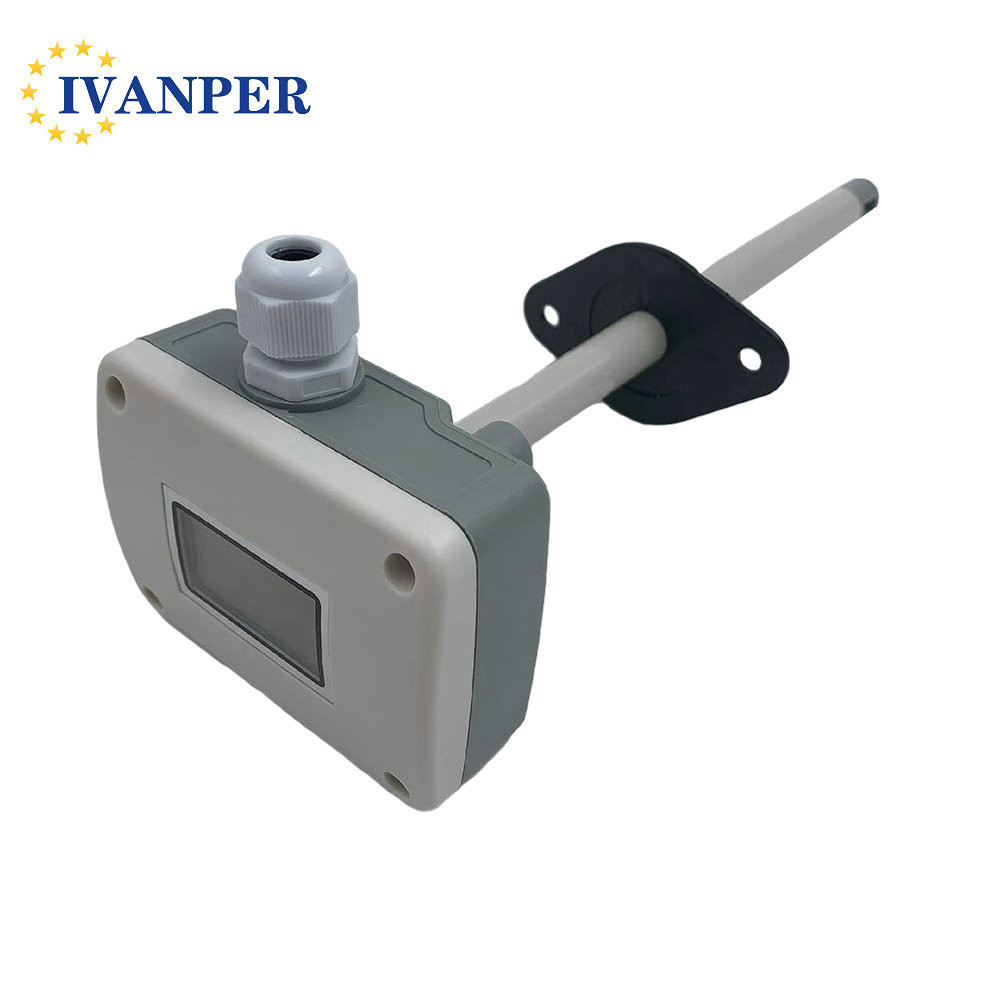

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 3

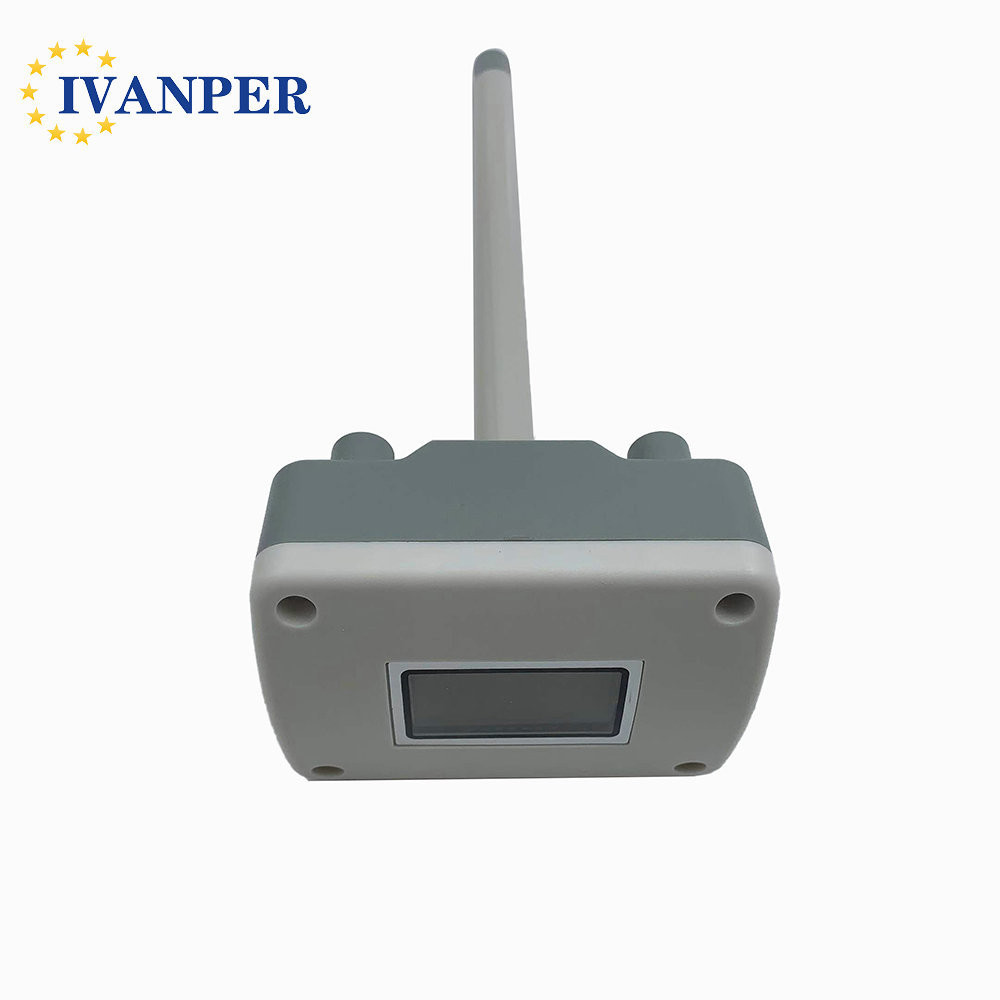

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 4
Company Profile
Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.

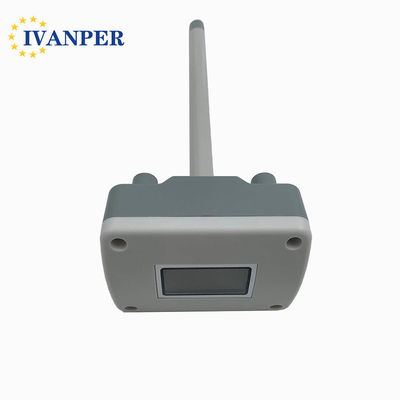

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 5

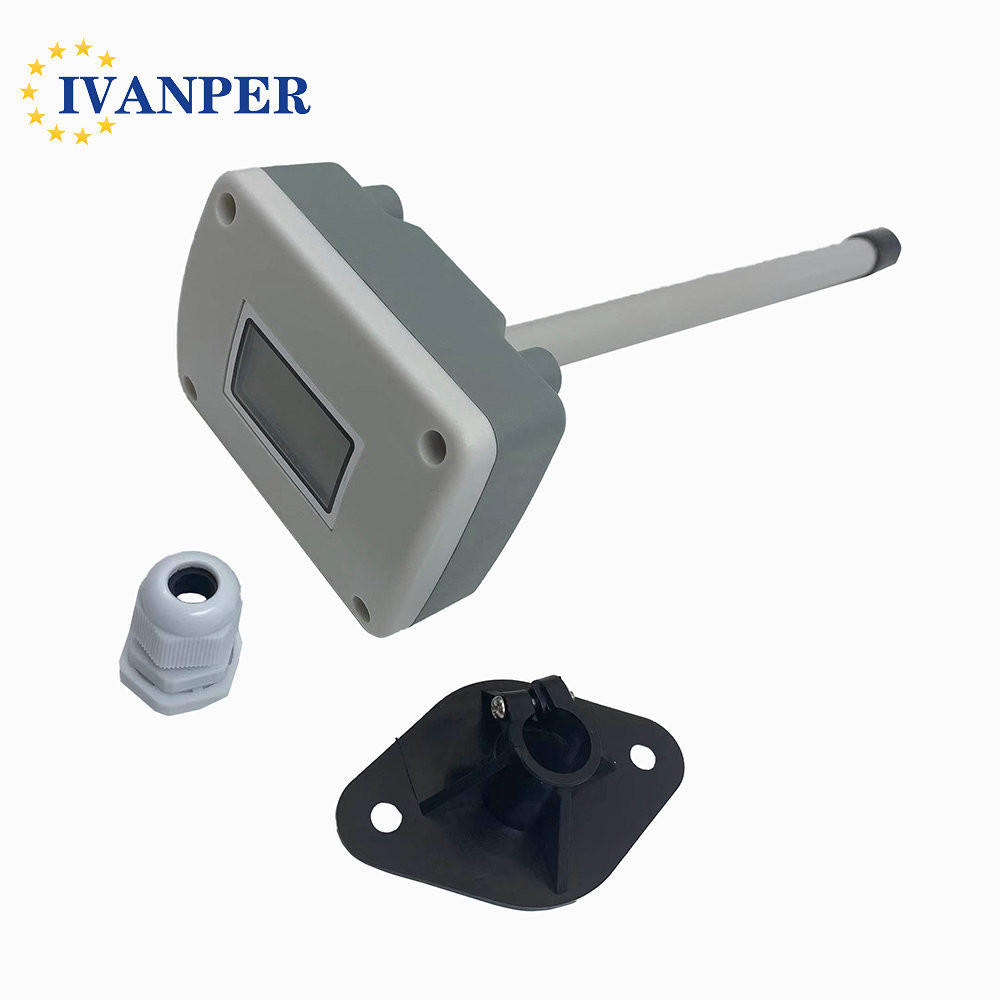

Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 6
Customized Industrial Pipeline Duct Wind Speed Sensor Measuring Instrument 7
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
