| Place of Origin: | China |
|---|---|
| Certification: | ATEX |
| Model Number: | AF231-EX |
| Minimum Order Quantity: | 1 |
| Price: | USD $1450-USD $1650 |
| Packaging Details: | carton |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000/month |
| Response Latency: | 0.2s | Working Current: | 24VDC |
|---|---|---|---|
| Weight: | 0.5 Kg | Measurement Range: | 0-99m/s |
| Color: | Orange | Output Form: | 0-10V, 4-20mA, RS485 |
| Oem: | Accepted | Accuracy Class: | 3% |

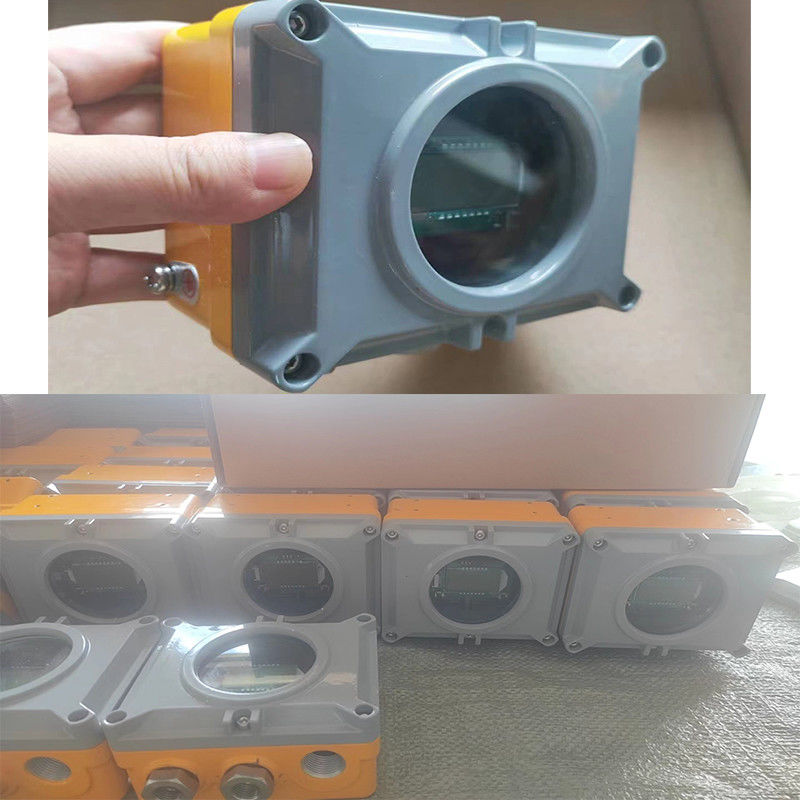

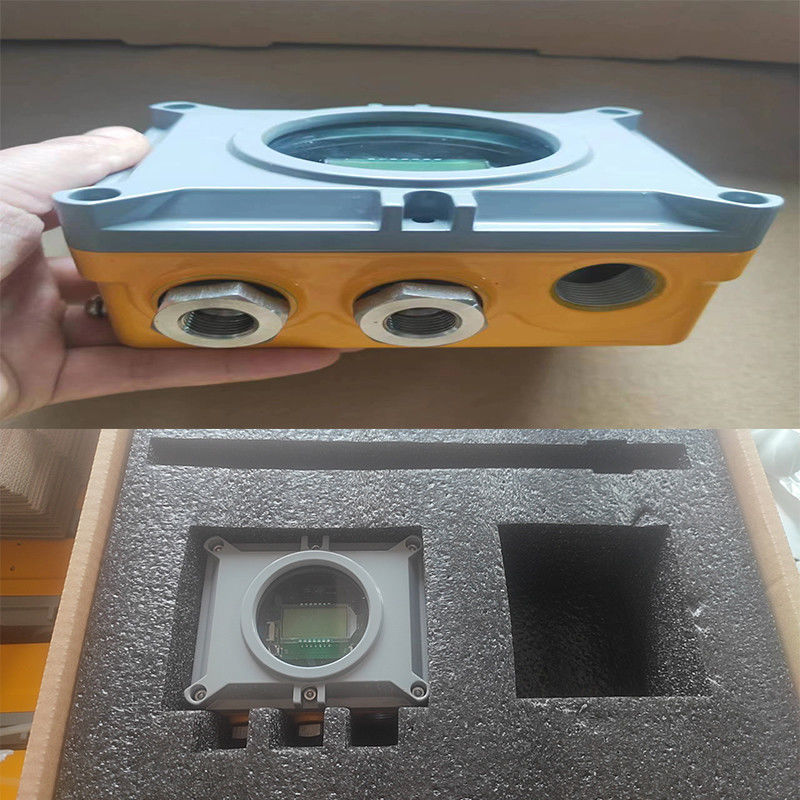

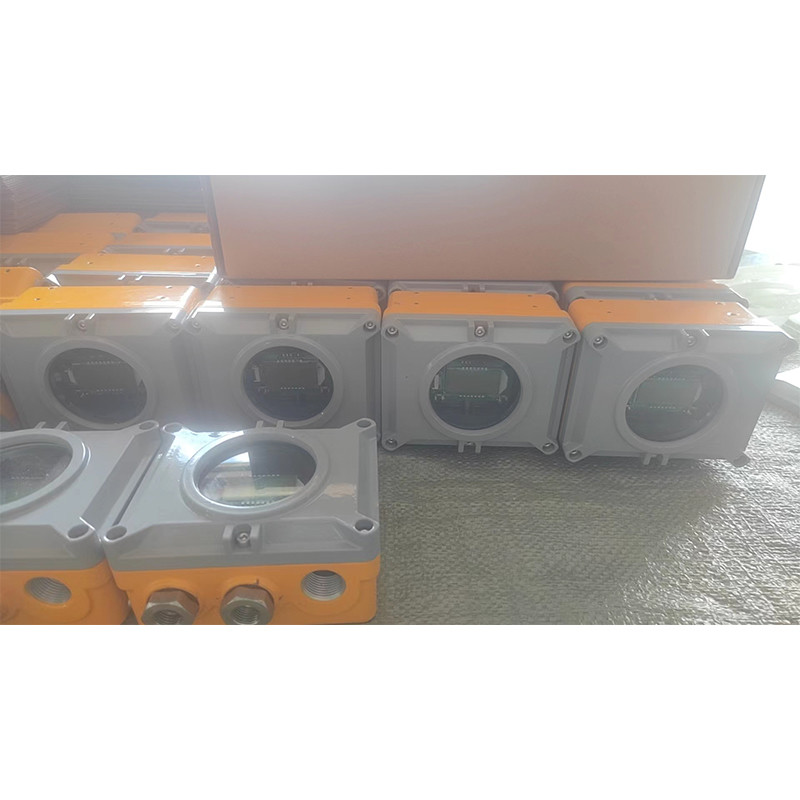

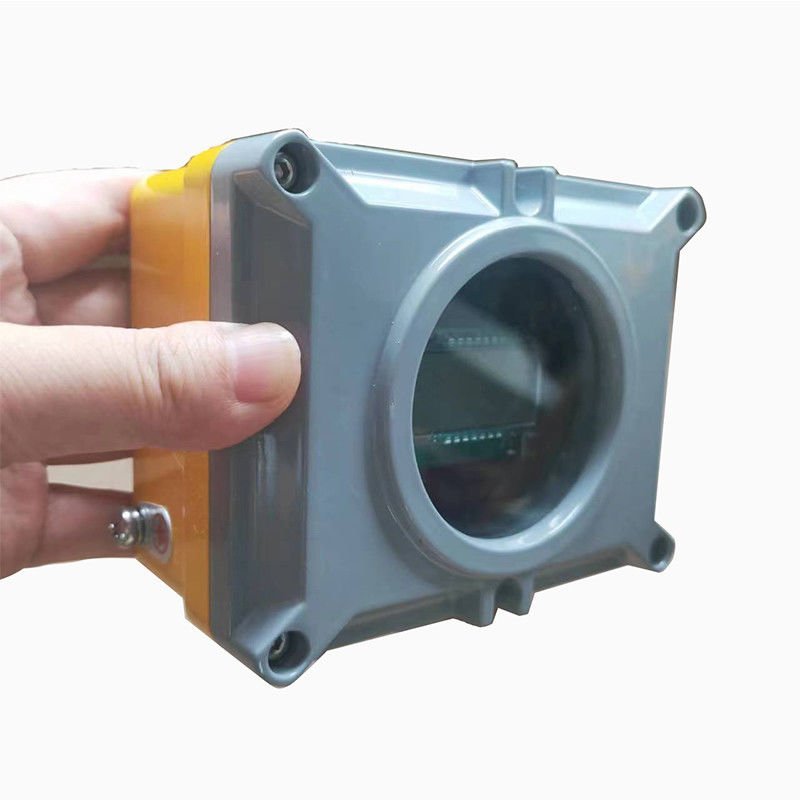

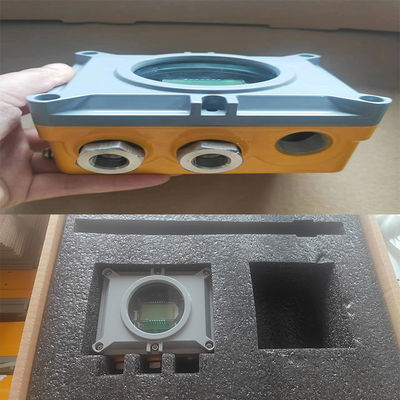

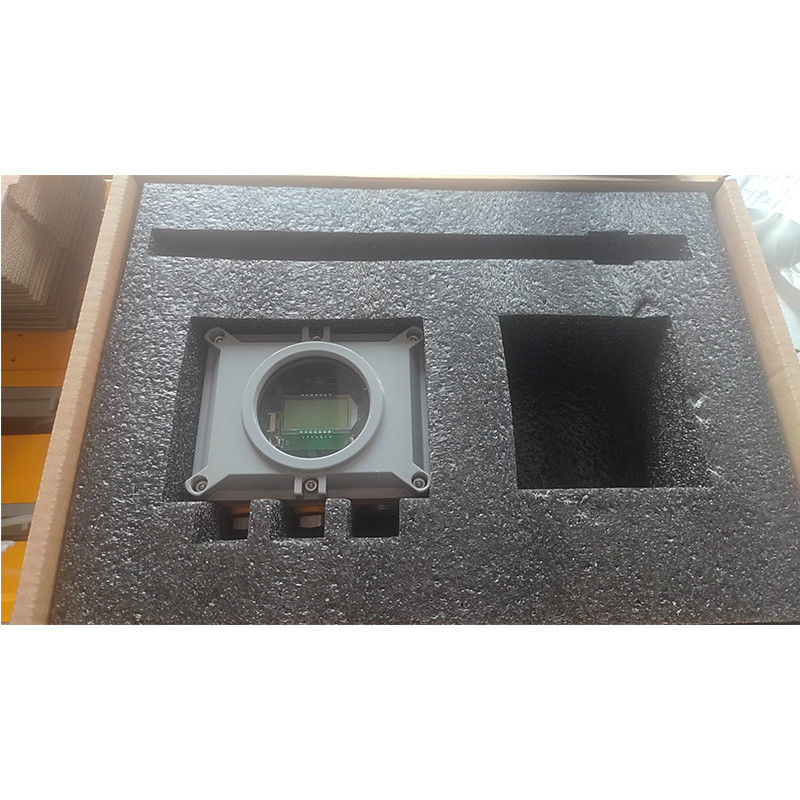

AF231-EX EXPLOSION-PROOF TRANSMITTER (hereinafter referred to as the transmitter) is designed and manufactured in strict accordance with EN IEC 60079-0:2017 "Explosive Atmosphere Part 0: General Requirements for Equipment" and EN IEC 60079-11:2012 "Explosive Atmosphere Part 11 Part: Intrinsically Safe "i" Protection Equipment". The transmitter has passed the inspection and obtained the Explosion-proof Certificate.
The transmitter is suitable for the presence of Class IIA, II B, II C, Zone 0, Zone 1, Zone 2 hazardous locations, Group T1-T6 explosive gas environment or Zone 20, Zone 21, Zone 22 combustible dust environment. It is used to detect the air velocity value of the gas (not sensitive to dust) that does not chemically react with stainless steel (1Cr18Ni9Ti) in the pipeline.
The Wind Speed Sensors are a type of air velocity transmitter, also known as a wind speed sensor. They have a working current of 24VDC and are suitable for a wide range of applications. With a humidity range of 5%~95%, these sensors provide reliable and accurate data. They have three output forms: 0-10V, 4-20mA, and RS485, and an accuracy class of 3%.
| Product Attribute | Description |
|---|---|
| Product Name | Air velocity transmitter |
| Working Current | 24VDC |
| Application | Widely |
| Color | Orange |
| Measurement Range | 0-99m/s |
| Weight | 0.5 Kg |
| Customized Support | OEM |
| Probe Length | Customized |
| OEM | Accepted |
| Output Form | 0-10V, 4-20mA, RS485 |
| Response Latency | 0.2s |
| Product Type | ATEX air velocity sensor, Wind speed sensor |
One of the most common applications for this wind speed sensor is in HVAC (Heating, Ventilation and Air Conditioning) systems. By measuring the speed of the air flow, the sensor can help regulate the temperature and humidity levels in a building, ensuring optimal comfort levels for the people inside.
In addition to HVAC systems, the Wind Speed Sensor AF231-EX is also ideal for use in various industrial settings. For example, it can be used to monitor wind speeds in factories or warehouses, where air flow can affect the efficiency of machines and equipment. With its fast response latency of 0.2s, this sensor can provide real-time data that can be used to make adjustments and optimize processes.
The Wind Speed Sensor AF231-EX is also highly customizable. As an OEM product, it can be adapted to suit a wide range of specific requirements. The cable length of 1M allows for flexibility in installation, while the output forms of 0-10V, 4-20mA, and RS485 provide compatibility with various data acquisition systems.
Overall, the Wind Speed Sensor AF231-EX is a versatile and reliable tool that can be used in a variety of settings. Whether you need to monitor air flow in a large building or optimize industrial processes, this high-accuracy sensor is up to the task.
