Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g

Basic Information
Place of Origin: Beijing, China
Brand Name: IVAN
Model Number: A2000
Minimum Order Quantity: 10 units
Price: $16.00/units 10-499 units
Detail Information
Warranty: 1year Customized Support: OEM, ODM, OBM
Product Name: Differential Pressure Gauge Medium: Non-corrosive Air
Operating Temperature: 0-60℃ Max. Pressure: 15 PSI
Weight: 560g Housing Die: Cast Aluminum Case
Accuracy: ±2% Connection Thread: 1/8"female NPT

Product Description

Product Description

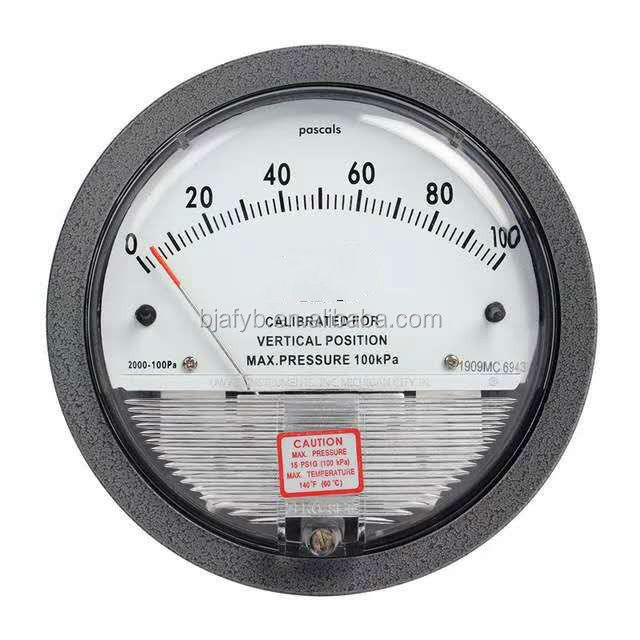

A2000 series gas micro differential pressure gauge is an elastic pressure gauge which uses magnetic suspension technology and rubber diaphragm as sensitive element. It can quickly indicate the pressure of low pressure air or non corrosive gas by pointer.This kind of differential pressure gauge is mainly used to measure the positive pressure, negative pressure or differential pressure of low pressure air or non corrosive gas. It is widely used to measure the pressure of fans and blowers, wind speed and orifice differential pressure. It has broad application prospects in pharmaceutical, medical equipment manufacturing, HVAC, semiconductor and other fields.
RANGES FOR IVAN
Pa
Kpa
Inches of Water
MM of Water
Dual Scale


0-30
0-0.5
0-.25
0-6
in w.cc
Pa or Kpa

0-60
0-1
0-.50
0-10
0-.25
0-62 Pa

0-100
0-1.5
0-1.0
0-15
0-0.5
0-125 Pa

0-125
0-2
0-2.0
0-25
0-1.0
0-250 Pa

0-300
0-5
0-8.0
0-30
0-2.0
0-500 Pa

0-500
0-8
0-10
0-50
0-3.0
0-750Pa

-30-0-30
0-10
0-20
0-80
0-4.0
0-1.0kPa

-60-0-60
0-20
0-50
0-100
0-5.0
0-1.25kPa

-100-0-100
0-30
0-100
0-125
0-6.0
0-1.5kPa

-250-0-250
0-50
0-180
0-200
0-8.0
0-2.0kPa

-500-0-500
0-60
0-250
0-300
0-0.5
0-2.5kPa

Bold Ranges Are Hot Sale






VARIOUS RANGES CAN BE CUSTOMIZED FOR YOU





Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 0
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 1
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 2
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 3
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 4
Recommend Products

Packing & Delivery
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 5
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 6
Company Profile



Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 7
Exhibition
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 8
Certifications
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 9
Pressure Differential Indicator Transmitter With Max. Pressure 15 PSI And 560g 10
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
