| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | IVAN |
| Model Number: | AF-WJ |
| Price: | $450.00 - $500.00/units |
| Packaging Details: | carton |
| Supply Ability: | 500 Unit/Units per Week |
| Warranty: | 12 Month | Customized Support: | OEM, ODM |
|---|---|---|---|
| Type: | Variable Area Water Flowmeters | Product Name: | Vortex Flow Meter |

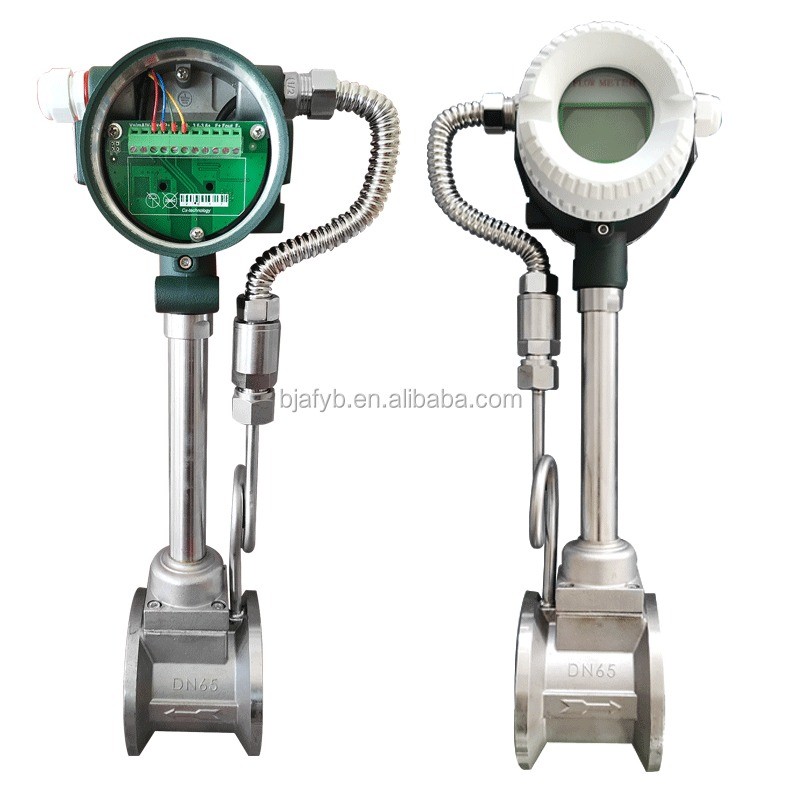

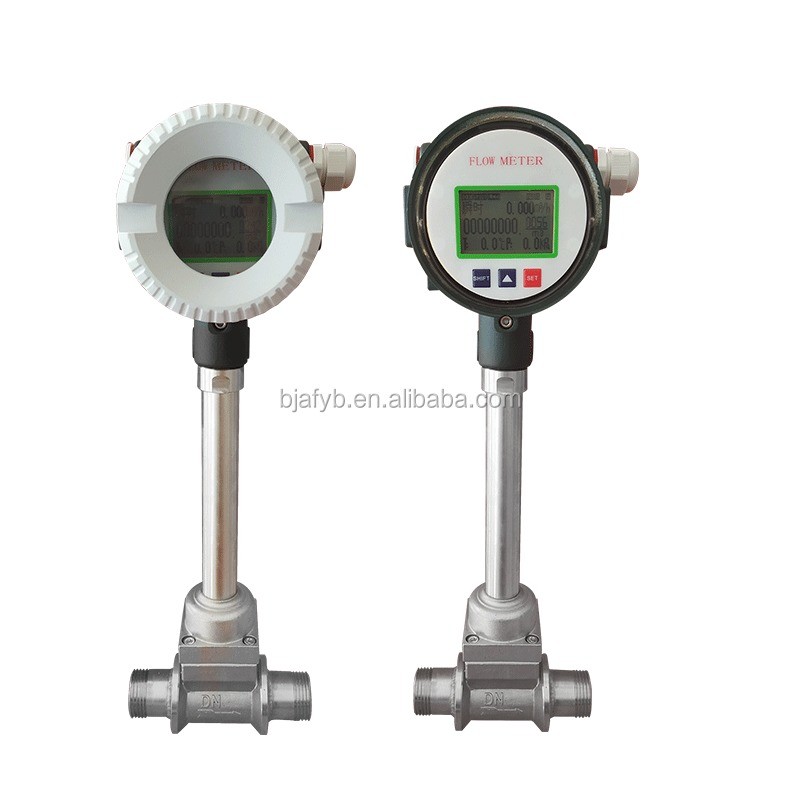

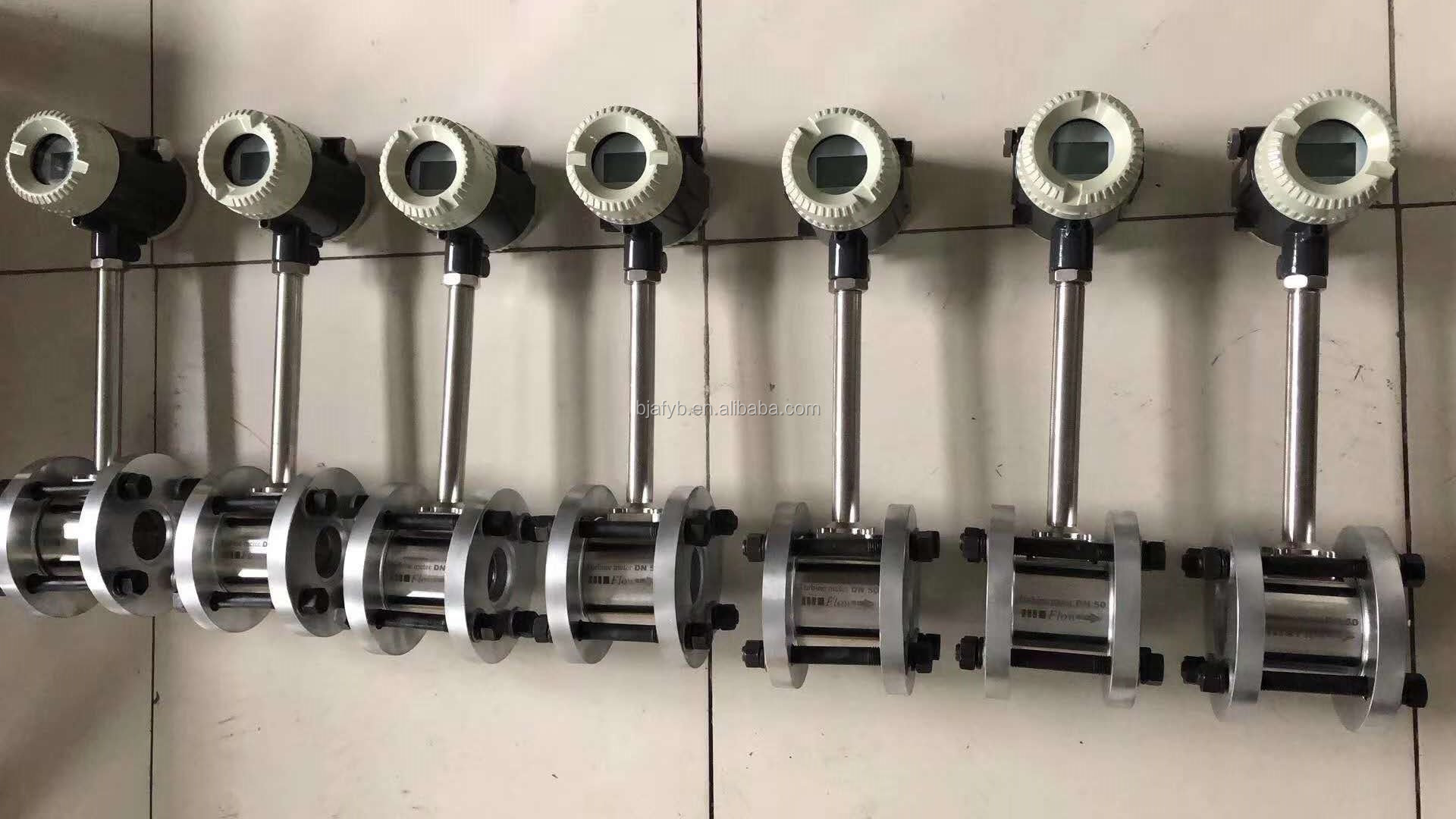

IVANPER Oil Vortex Flowmeter for Sale
|
Medium |
Liquid, gas, steam |
|
Medium viscosity |
<10cp |
|
Medium temperature |
-50~+400℃ |
|
Body material |
1Cr18Ni9Ti (customized) |
|
Sensor seal |
Graphite gasket (customized) |
|
Environment temperature |
-30~+80℃ (customized) |
|
Nominal diameter(mm) |
Pipeline type:DN15~DN300 |
|

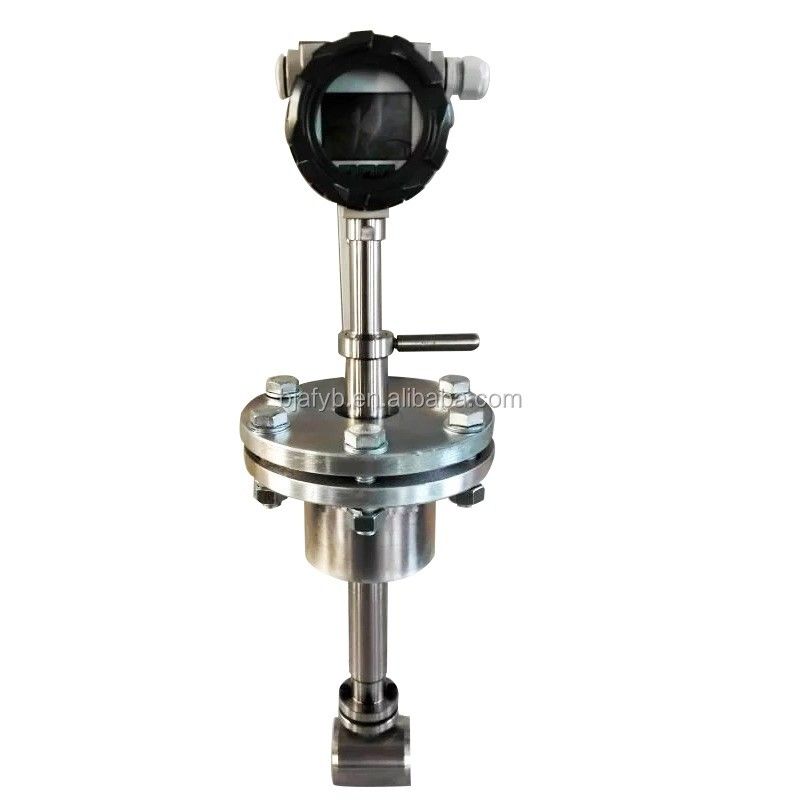

Insertion type:DN200~DN2000 |
|
|
Accuracy grade |
±0.5% |
|
Range ratio |
10:1 |
|
Nominal pressure |
PN25, PN40 (customized) |
|
Connection mode |
Clamp type: DN15~DN300 |
|
Flange type: DN15~DN300 |
|
|
Insertion type: DN200~DN2000 |
|
|
Explosive-proof grade |
Flameproof type ExdIIBT4-T6, Aniline type ExiaIICT4-T6 |
|
Protection grade |
IP67 |
|
Converter shell |
Die-casting aluminum, lacquer |
|
Power supply |
12~36VDC, 3.6V Battery |
|
Output signal |
Two wire 4~20mA current |
|
Field display |
Programmable settings display instantaneous flow, accumulative flow |
|
Protocol mode |
RS485 |
Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
