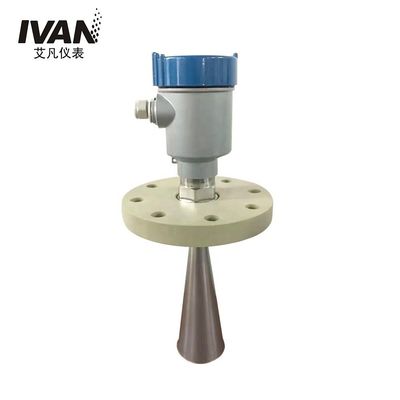

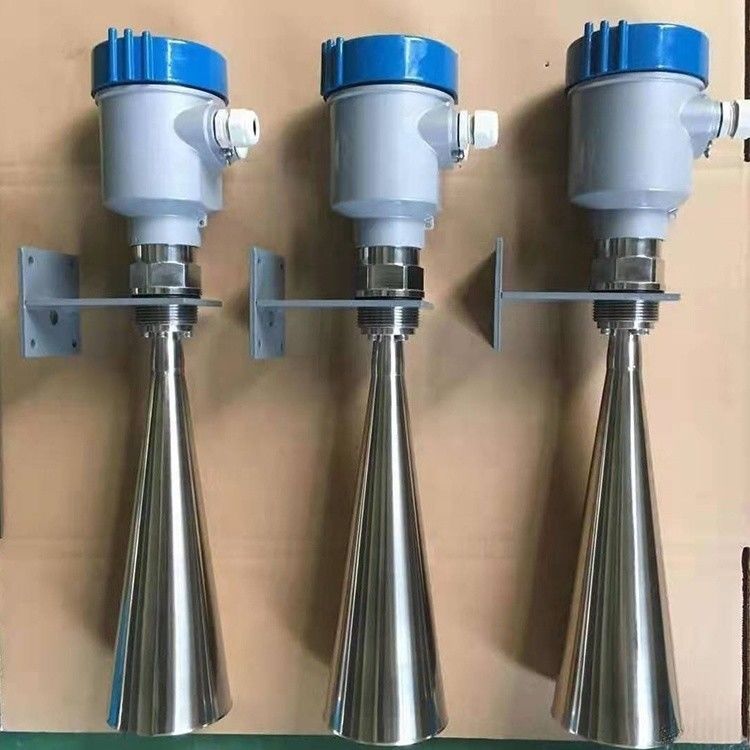

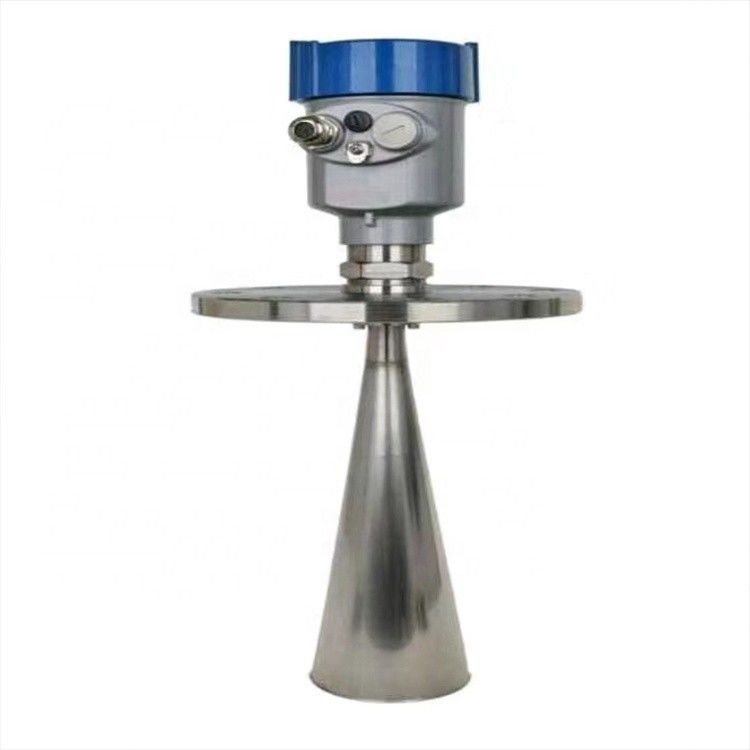

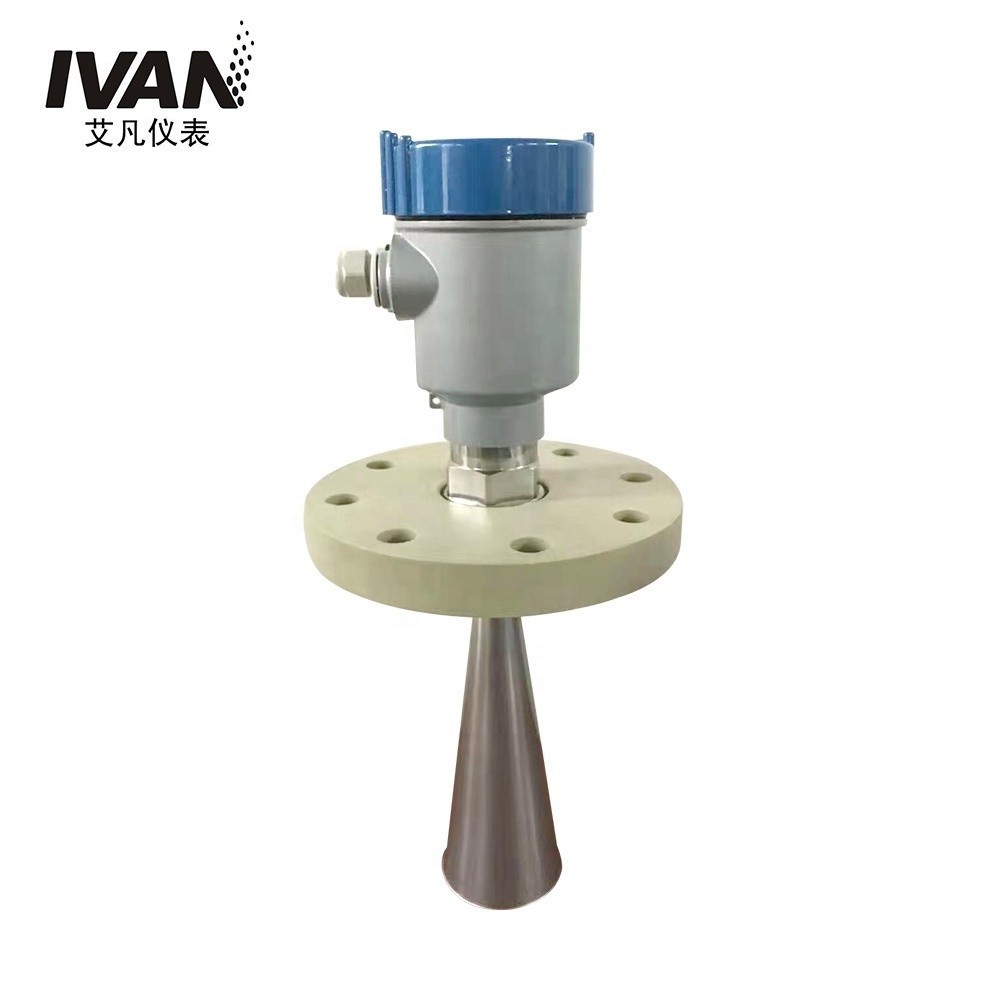

OEM Reflex Radar Level Meter For IVANPER Tank Level Control System

Basic Information
Place of Origin: Beijing, China
Brand Name: IVANPER
Model Number: AF805
Minimum Order Quantity: 10 units
Price: $480.00 - $550.00/units
Packaging Details: Carton
Supply Ability: 500 Unit/Units per Week
Detail Information
Grade: Industrial Warranty: 12 Month
Customized Support: OEM, ODM Product Name: Radar Liquid Level Meter
Material: Stainless Steel Range: 30m Liquid, 15 Solid
Accuracy: -0.1~4MPa Application: Liquid And Solid Powder
OEM: Accepted Capacity: 10000p/m

Product Description

Product Description
Hydrostatic level transmitter input type with cable and level pressure sensor liquid level gauge with digital output
1.Convenient to use,flexible
2.Widely used,easy to fit
3.Wide measurement range
4.High accuracy,good stability,high reliability
5.Good design for water-proof

Details
Hydrostatic level transmitter input type with cable and level pressure sensor liquid level gauge with digital outputThe input
hydrostatic level transmitter is a deformation product of the company's pressure test and is suitable for level measurement of open containers. It adopts two kinds of sensors: a cable structure adopting silicon piezoresistive transfer sensors, suitable for clean water, such as rivers, reservoirs, water tanks, wells, etc.; a ceramic pressure sensor with a stainless steel rod structure, suitable for sewage, oil , slurry and other applications.

Application
1. Water plants, sewage treatment plants, urban water supply
2. pools, wells, mines, culverts, water tanks
3. industrial pools, oil pools
4. hydrogeology, reservoirs, river courses
5. Marine salvage and seawater level measurement
Technical parameters
The basic error 0.5% F.S or 0.2% F.S
The measurement range cable type
Minimum 0 ~ 0.35m Maximum 0~100m
Rod type (or air guide)
Minimum 0~0.35m Maximum 0~3m
power supply 24VDC
Output 4-20mA (or 0 ~ 10mA, 1 ~ 5V, 0 ~ 10V) If you want to output the voltage signal, the sampling resistance should reach 0.05%
accuracy
Load resistance 250Ω
Ambient temperature -20 ~ +85 °C
Medium temperature -20 ~ +85 °C
Storage temperature -40 ~ +125 °C
The installation position directly into the bottom of the liquid
Sensor housing material 1Cr18Ni9Ti or PTFE
Sensor isolation diaphragm material 316L stainless steel or ceramic
Air guide cable jacket material polyethylene
OEM Reflex Radar Level Meter For IVANPER Tank Level Control System 0
OEM Reflex Radar Level Meter For IVANPER Tank Level Control System 1
OEM Reflex Radar Level Meter For IVANPER Tank Level Control System 2
Recommend Products

Packing & Delivery
OEM Reflex Radar Level Meter For IVANPER Tank Level Control System 3
OEM Reflex Radar Level Meter For IVANPER Tank Level Control System 4
